ASUS AX6600 Tri-Band Mesh Wi-Fi 6 Access Point 2-pack 90IG0590-MO3G80

ASUS AX6600 Tri-Band Mesh Wi-Fi 6 Access Point 2-pack

Upgrade to whole-home WiFi coverage!

The ZenWiFi AX Single Pack includes one ASUS AX6600 WiFi 6 router, providing up to an extra 2750 sq. ft. of coverage to your existing network.

WiFi 6

*ZenWiFi AX puts your WiFi into top gear! With a total bandwidth of up to 6600 Mbps, it’s up to 2.2X faster* than tri-band AC3000 (WiFi 5) routers.

• The 160MHz bandwidth may be unavailable in the 5GHz band in some regions/countries due to regulatory restrictions.
• Compatible WiFi 6 device required.
• The data compares the speed of 4×4 11ax on 5GHz 160MHz bandwidth with 1024QAM modulation to the speed of 4×4 11ac on 5GHz 80MHz with 256QAM modulation.

Add Extra ZenWiFi Nodes, with No Hassle!

Adding an extra ZenWiFi node to your network is easy. Simply follow the on-screen guidance in the ASUS Router app: it all takes just a few minutes!

Make the Internet a Safer Place for Everyone

AiProtection Pro with Advanced Parental Controls is free for life. It gives you total peace of mind, and you can keep an eye on everything that’s happening on your network via the mobile app.

Tri-band. Zero slowdowns.

Unlike traditional dual-band mesh WiFi systems that sacrifice half of the total wireless bandwidth to the backhaul connection, ZenWiFi AX features a tri-band design with a full WiFi band for the backhaul, maximizing system performance and stability. With this upgraded design, you’ll experience fast and stable WiFi, even when data transfers through multiple hubs to reach your device.

Backhaul Configuration

ZenWiFi AX allows flexible configuration of the backhaul connection. You can set the second 5GHz band as a dedicated or non-dedicated backhaul connection, enabling maximized backhaul speed or freeing up the fastest 5GHz band for connected devices. If you have Ethernet ports in your walls, you can also set ZenWiFi AX to use Ethernet backhaul, reserving all three WiFi bands for your wireless devices for even more stable and reliable networking.

AiMesh Technology

Even non-experts can quickly set up AiMesh technology, while more experienced users will appreciate the comprehensive advanced networking features.

Specifications

• Product Segment: AX6600 ultimate AX performance：574+1201+4804Mbps
• AX technology: Yes
• Antenna: Internal antenna x 6
• Memory: 256 MB Flash 512 MB RAM
• Boosts speed: OFDMA (Orthogonal Frequency Division Multiple Access) Beamforming: standard-based and universal 1024-QAM high data rate 20/40/80/160 MHz bandwidth * The 160MHz bandwidth may be unavailable in the 5GHz band in some regions / countries due to regulatory restrictions.
• Operating Frequency: 2.4G Hz, 5 GHz-1, 5 GHz-2

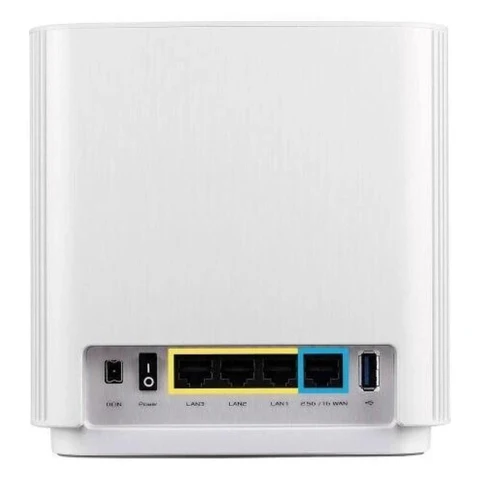

• Ports: RJ45 for 2.5G BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 3 USB 3.1 Gen 1 x 1
• Button: WPS Button, Reset Button, Power Switch
• LED Indicator: Power x 1
• Product Weight (g): 716 g

Wireless:

• IPv6
• Wi-Fi Encryption : WPA2-PSK, WPA-PSK, WPA-Enterprise , WPA2-Enterprise , WPS support
• UTF-8 SSID
• Guest Network
• Maximum Guest Network rule : Max 9 rules
• WPS
• WiFi MAC address filter
• Maximum MAC filters : Max 64 rules
• Wireless scheduler
• Airtime fairness
• RADIUS Client
• Universal beamforming
• Explicit beamforming

Power Supply:

• AC Input: 110V~240V(50~60Hz)
• DC Output: 19 V with max. 1.75 A current
• DC Output: 12 V with max. 3 A current

Network Standard:

• IEEE 802.11a
• IEEE 802.11b
• IEEE 802.11g
• WiFi 4 (802.11n)
• WiFi 5 (802.11ac)
• WiFi 6 (802.11ax)
• IPv4
• IPv6
